System
- ESP32 embedded, Xtensa® dual-core 32-bit LX6 microprocessor, up to 240 MHz
- Ultra Low Power (ULP) coprocessor
- 8 MB SPI flash
- 2 MB SPI PSRAM
Wireless
Wi-Fi
- 802.11 b/g/n
- Bit rate: 802.11n up to 150 Mbps
- A-MPDU and A-MSDU aggregation
- 0.4 μs guard interval support
- Center frequency range of operating channel: 2412 ~ 2484 MHz
Bluetooth
- Bluetooth V4.2 BR/EDR and Bluetooth LE specification
- Class-1, class-2 and class-3 transmitter
- AFH
- CVSD and SBC
UWB
Qorvo DWM3000 module (only available on UWB Core devices.)
- Interoperable with Apple U1 chip (Beta Evaluation)
- IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant
- Fully aligned with FiRaTM PHY, MAC and certification development
- Supports UWB Channels 5 (6.5 GHz) and 9 (8 GHz)
- Programmable transmitter output power
- Fully coherent receiver for maximum range and accuracy
- Data rates of 850 kbps, 6.8 Mbps
LoRa
NiceRF LoRa1262 module (only available on LoRa Core devices.)
- Semtech's SX1262 device
- Frequency Range:868/915 MHz (customizable150-960 MHz)
- Sensitivity:-148dBm @Lora
- Maximum output power:22 dBm(160mW)
- 256 bytes FiFo
- Data transfer rate:
- 0.6-300 Kbps @FSK
- 0.018-62.5 Kbps @Lora
NB-IoT
Quectel BC66NB module (only available on NB-IoT Core devices.)
- Frequency Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26*/B28/B66
- Data Rate
- Single-Tone: Max. 25.5 kbps (DL)/16.7 kbps (UL)
- Multi-Tone: Max. 25.5 kbps (DL)/62.5 kbps (UL)
- Output Power: 23 dBm ±2 dB
- Sensitivity: -129 dBm
- Protocol Stacks: UDP/TCP/LwM2M/MQTT/SNTP/TLS/DTLS/PPP*/ HTTP*/HTTPS*/CoAP*
GNSS
Quectel L76 module (only available on LoRa Core and NB-IoT Core devices.)
- Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS
- High sensitivity, -165dBm @Tracking, -148dBm @Acquisition
- 99 acquisition/ 33 tracking channels and 210 PRN channels
Security
Microchip ATECC608 CryptoAuthentication secure element (optional)
- Protected storage for up to 16 Keys, certificates or data
- Hardware support for asymmetric sign, verify, key agreement – ECDSA: FIPS186-3 Elliptic Curve Digital Signature
- ECDH: FIPS SP800-56A Elliptic Curve Diffie-Hellman
- NIST standard P256 elliptic curve support
- SHA-256 & HMAC hash including off-chip context save/restore
- AES-128: encrypt/decrypt, galois field multiply for GCM
- Turnkey PRF/HKDF calculation for TLS 1.2 & 1.3

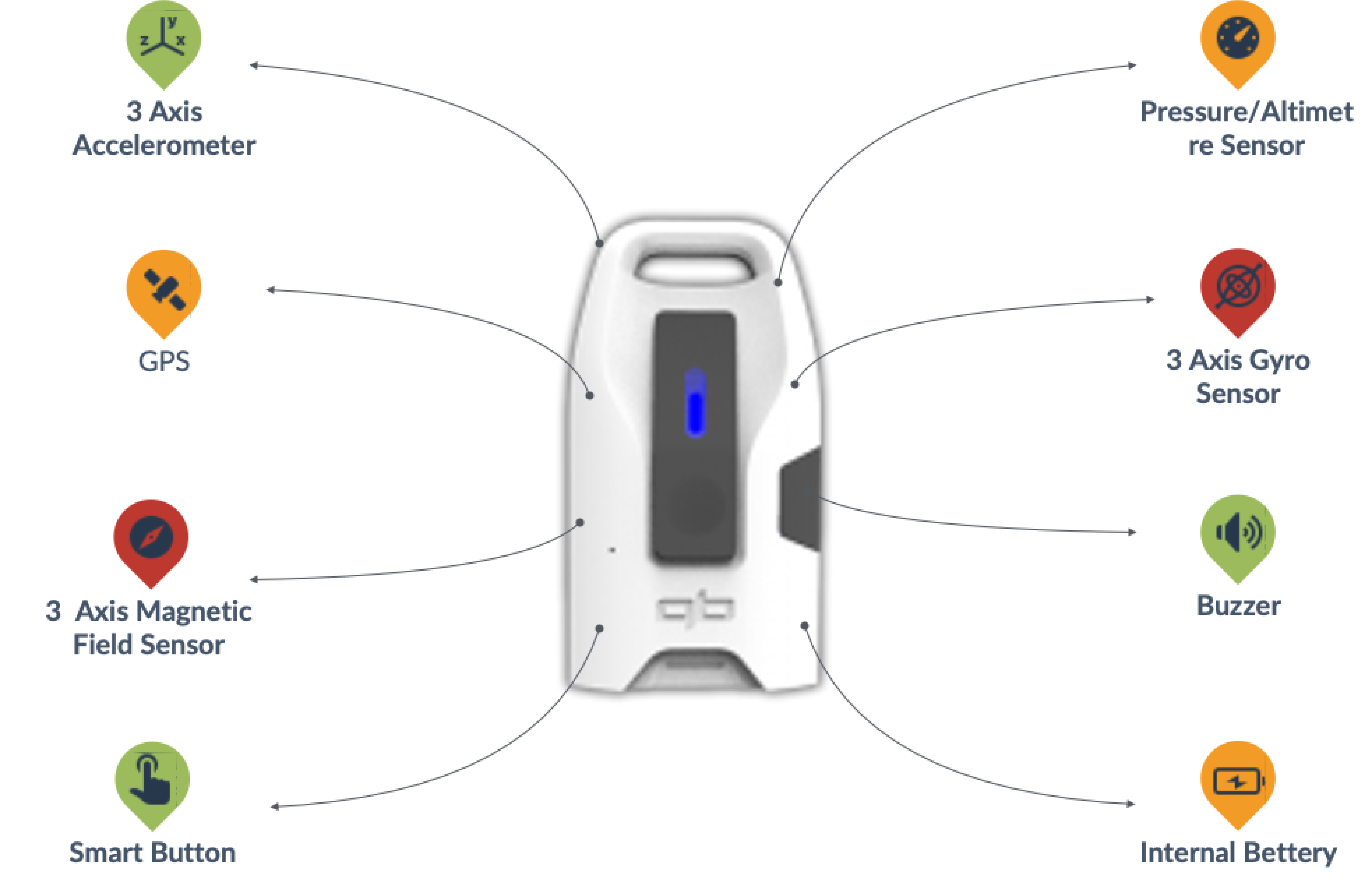

Sensors
Accelerometer
STMicroelectronics LSM303AG
- 3 acceleration channels
- ±2/±4/±8/±16 g selectable acceleration full scales
- 16-bit data output
- Sampling rate: 5376 Hz
Gyroscope
STMicroelectronics L3GD20H
- three-axis angular rate sensor
- ±245/±500/±2000 dps selectable full scales
- 16-bit data output
- Sampling rate: 800 Hz
Magnetic field
STMicroelectronics LSM303AG
- 3 magnetic field channels
- ±50 gauss magnetic dynamic range
- 16-bit data output
- Sampling rate: 100 Hz
Pressure
Infineon DPS368
- Pressure: 300–1200 hPa
- Precision: ± 0.002 hPa (or ±0.02 m)
- Rel. accuracy: ± 0.06 hPa (or ±0.5 m)
- Abs. accuracy: ± 1 hPa (or ±8 m)
- Sampling rate: 128 Hz
User Interface
- 1 programmable push-buttons
- 1 programmable status LED
- Built-in Buzzer rated frequency of 4000 Hz
- Communication interface for Block extensions
- Charge and debug interface for the docking station
Battery and Power
- Li-Ion rechargeable 590 mAh battery
- Charging via the docking station
- Operating voltage: 5V DC
Size
- length 70 mm x width 50 mm x height 23 mm
